The world’s most advanced fully-automatic digital charger.

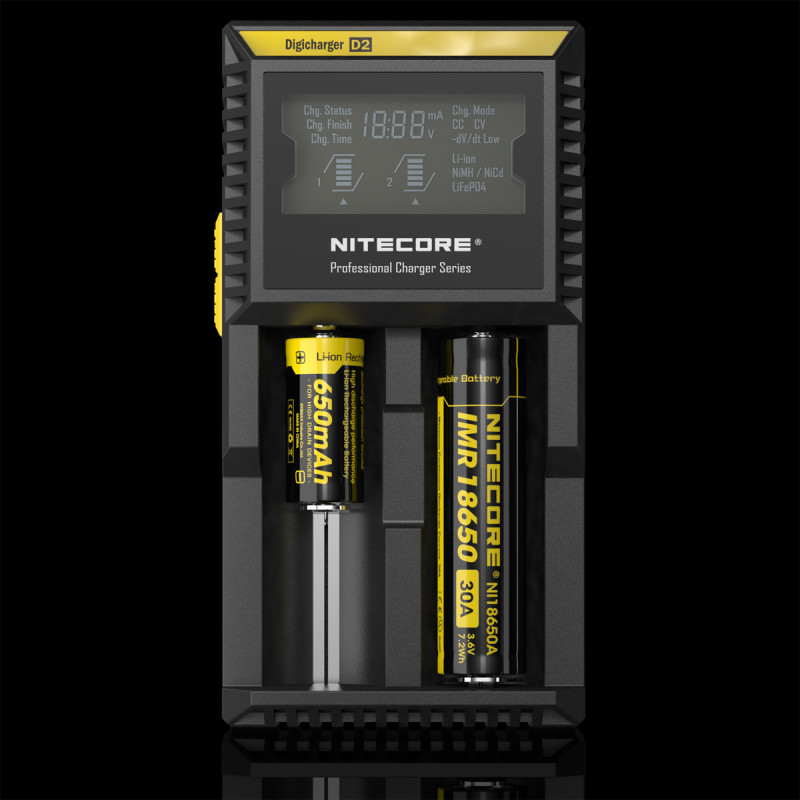

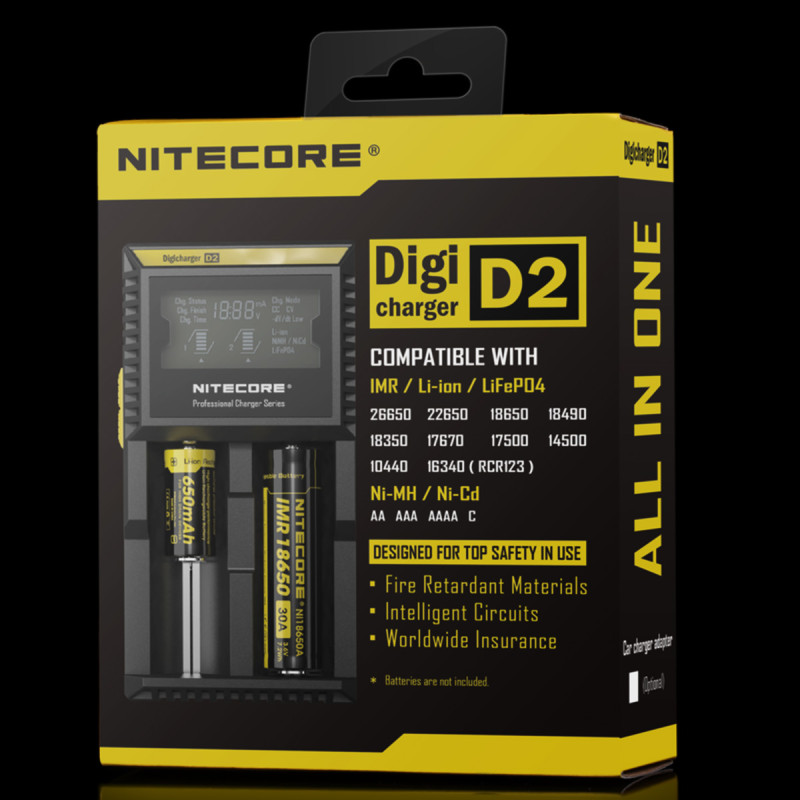

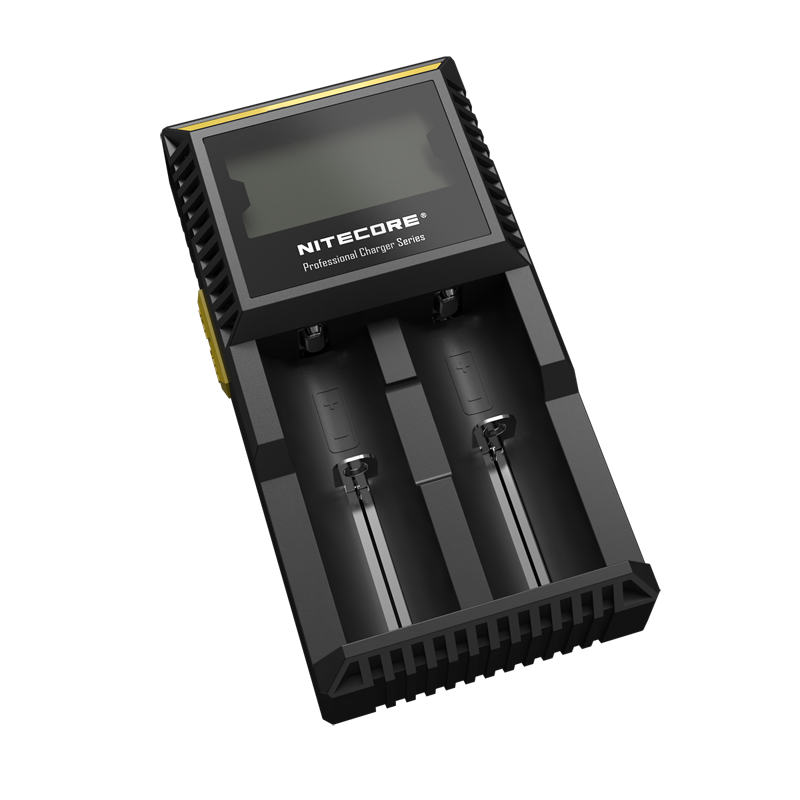

Nitecore Digicharger D2
Description
The Nitecore D2 is a universal smart charger compatible with almost all cylindrical rechargeable batteries, thus eliminating the need to own several chargers. The D2 automatically detects Li-ion, Ni-MH and Ni-Cd batteries, and through manual selection is also capable of charging LiFePO4 batteries. Intelligent charging circuitry selects the optimal charging mode (CC, CV and dV/dt) for a given battery and each of the D2’s two microcomputer-controlled charging slots then monitors and charges the battery independently. Furthermore, an integrated digital LCD screen clearly displays charging progress, voltage, current and time while an intelligent automatic power-off function terminates current when charging is complete. The Nitecore D2: The world’s most advanced fully-automatic digital charger. It’s as simple as insert, detect and charge.
Specification
- Input: AC 100-240V 50/60Hz 0.25A(MAX), DC 12V 1A
- Output voltage: 4.2V ±1% / 3.7V ±1% / 1.48V ±1%
- Output current: 500mA x 2
- Compatible with: Li-ion / IMR / LiFePO4: 26650, 22650, 18650, 17670, 18490, 17500, 18350, 16340(RCR123), 14500, 10440), Ni-MH / Ni-Cd: (AA, AAA, AAAA, C)
- Dimensions: 5.63” × 2.91” × 1.42” (143mm× 74mm×36mm)
- Weight: 5.93oz (168g) (without batteries and power cord
Features
- Capable of charging 2 batteries simultaneously
- Each of the two battery slots monitors and charges independently
- Compatible with and identifies Li-ion (26650, 22650, 18650, 17670, 18490, 17500, 18350, 16340(RCR123), 14500, 10440), Ni-MH and Ni-Cd (AA, AAA, AAAA, C) rechargeable batteries
- Optimized charging design for IMR batteries
- Integrated LCD panel clearly displays charging parameters and progress
- Two conveniently located side buttons allow easy selection of specific battery types and charging parameters
- Intelligent circuitry detects the battery type and status before entering automatic charge mode (CC, CV, dV/dt)
- Automatically detects battery power status and selects the appropriate voltage and charge mode (with the exception of LiFePO4 batteries which require manual selection)
- Compatible with LiFePO4 batteries
- Compatible with small capacity batteries
- Automatically stops charging when complete
- Features over-charge prevention to protect batteries
- Features temperature monitoring to prevent overheating
- Made from durable ABS (fire retardant / flame resistant)
- Features reverse polarity protection
- Designed for optimal heat dissipation
- Certified by RoHS, CE, FCC and CEC
- Insured worldwide by Ping An Insurance (Group) Company of China, Ltd.
Warnings:
- Use Rechargeable Batteries or With PCB Batteries. Other types of batteries may cause personal injury.
- The D2 should only be used indoors or inside a motor vehicle and under no circumstances should it be exposed to water, high humidity and low or high ambient temperatures.
- Do not disassemble or modify the charger.
- Children under the age of 18 should be supervised by an adult when using the D2.
- The D2’s safe operating temperature is between 0ºC--40ºC
- Do not use or store the charger near open flames, direct sunlight, heating devices or other high-temperature environments.
